📄 Digitally Sign PDFs with Azure Key Vault & GroupDocs.Signature for .NET | Complete Guide

Introduction

PDF files are essential in various industries, and ensuring their authenticity and integrity through digital signatures is a critical security measure. Digital signatures provide legal validity and protect documents from tampering. This comprehensive guide walks you through implementing .NET PDF signing by creating a secure PDF digital signature service using Azure Key Vault and GroupDocs.Signature for .NET.

Electronic document signatures have become increasingly important for businesses transitioning to paperless workflows. GroupDocs.Signature for .NET offers a powerful C# PDF digital signature solution that meets digital signature compliance requirements across various regulatory frameworks. Whether you’re new to PDF signing in .NET applications or looking to enhance your existing implementation, this tutorial covers everything you need to know.

Azure Key Vault is a cloud-based key management service that allows secure storage and management of cryptographic keys and certificates. GroupDocs.Signature for .NET is a powerful, secure PDF signing API that enables developers to programmatically apply digital signatures to PDF files. By integrating these technologies, you can build a robust and efficient PDF digital signature service.

One of the most powerful features we’ll explore is custom hash signing, which provides exceptional flexibility for your signing workflow. This approach allows you to connect external signing devices like hardware security modules (HSMs), smart cards, or any other cryptographic devices to your application. With custom hash signing, developers can write their own sign services that interface with proprietary systems, legacy infrastructure, or specialized security hardware while maintaining compatibility with the GroupDocs.Signature framework. This makes it an ideal solution for organizations with specific security requirements or existing investment in cryptographic infrastructure.

🔐 Create an Azure key vault and certificate

Let’s begin by setting up an Azure Key Vault and generating a certificate.

Step 1: Provision the Key Vault

Create a new Azure Key Vault resource using the Azure portal. For detailed instructions, please check out this quick-start guide.

💡If you don’t have an active Azure subscription, you can sign up for a 1-month free trial to get started.

Step 2: Generate or Import Your Certificate

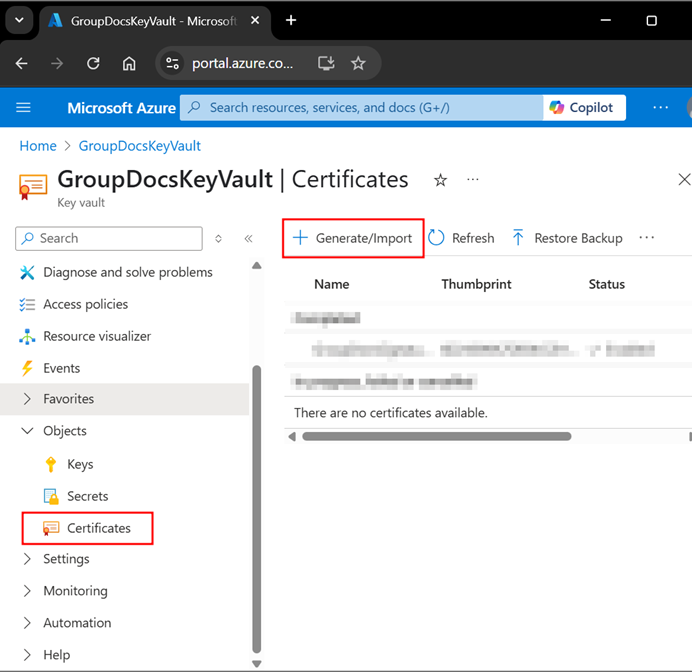

Once your key vault is up and running, navigate to its dashboard, select the Certificates tab, and click on Generate/Import to add your certificate.

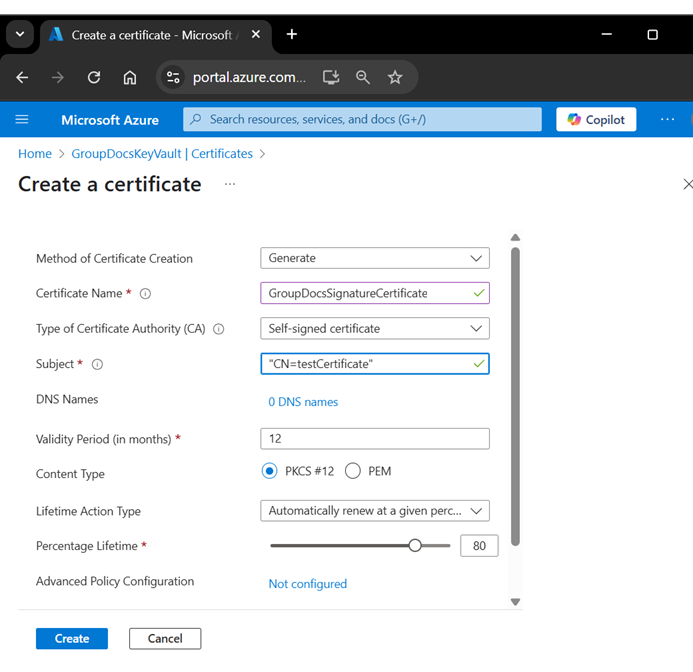

Step 3: In the Method of Certificate Creation field, select Generate to automatically create a new certificate. For this example, we’re opting for a Self-signed certificate as the certificate authority type.

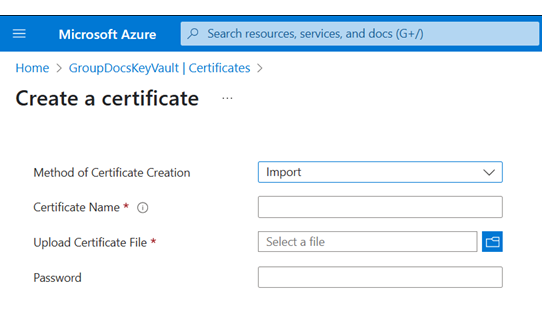

Note: If you prefer to use an existing certificate, you can select Import to load one from your local device.

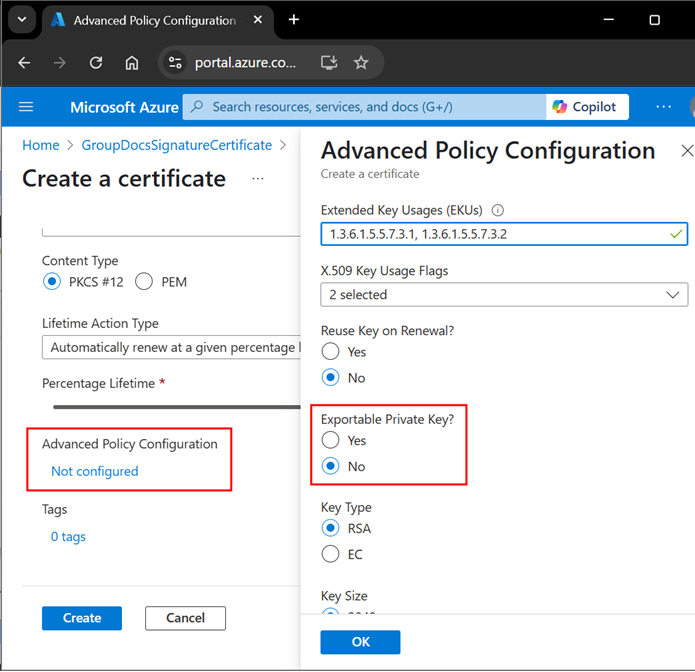

Step 4: Then, go to Advanced Policy Configuration and set the Private Key Export option to No.

Step 5: Finally, click Create. The certificate will now be added to your key vault.

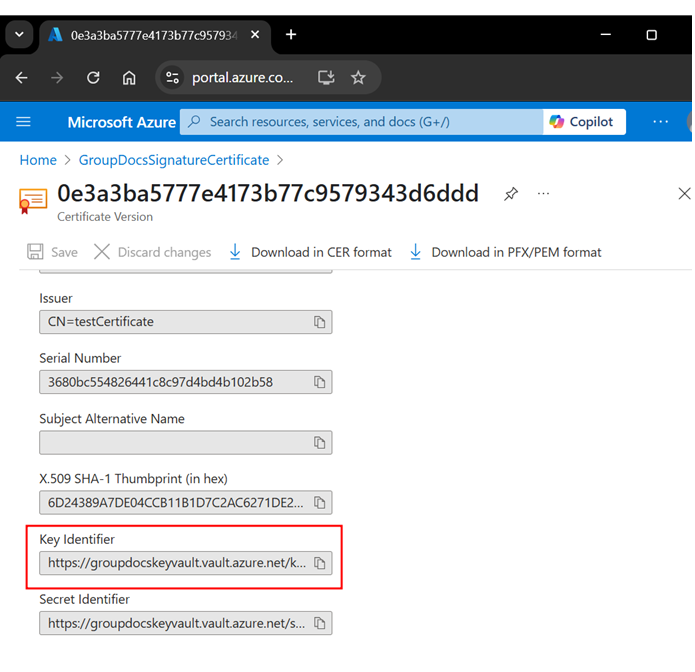

To view its details, simply click on the certificate to open its properties.

⚙️ Register the application to enable access to the Azure Key Vault

To allow the Web API to access the Azure Key Vault, you need to register it in Azure Active Directory:

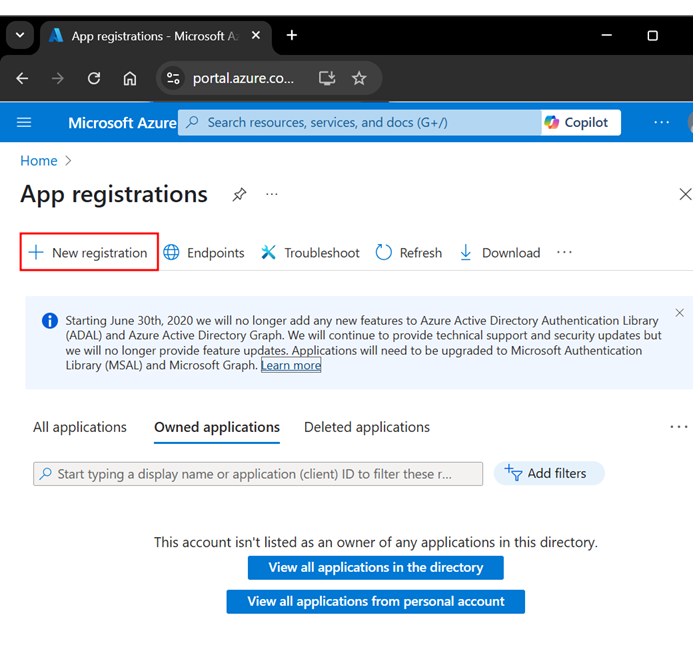

Step 1: Navigate to Azure Active Directory, choose App registrations, and click New registration.

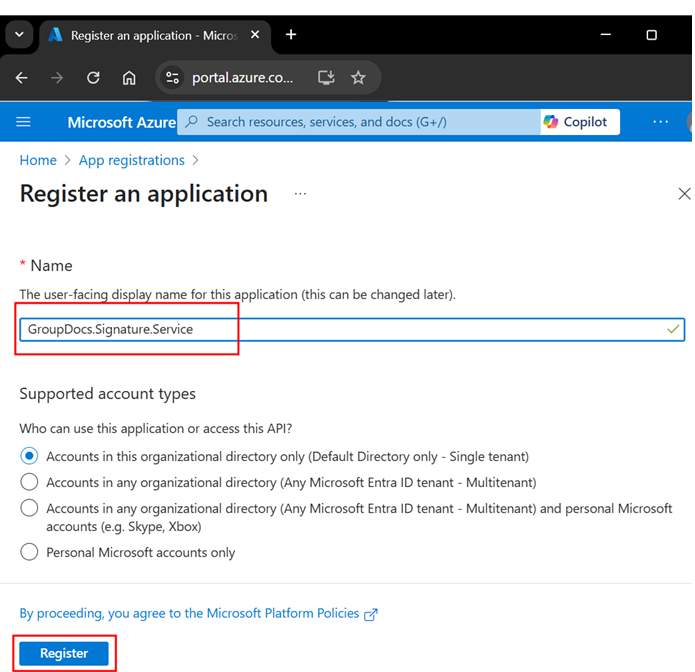

Step 2: Enter your application name and register.

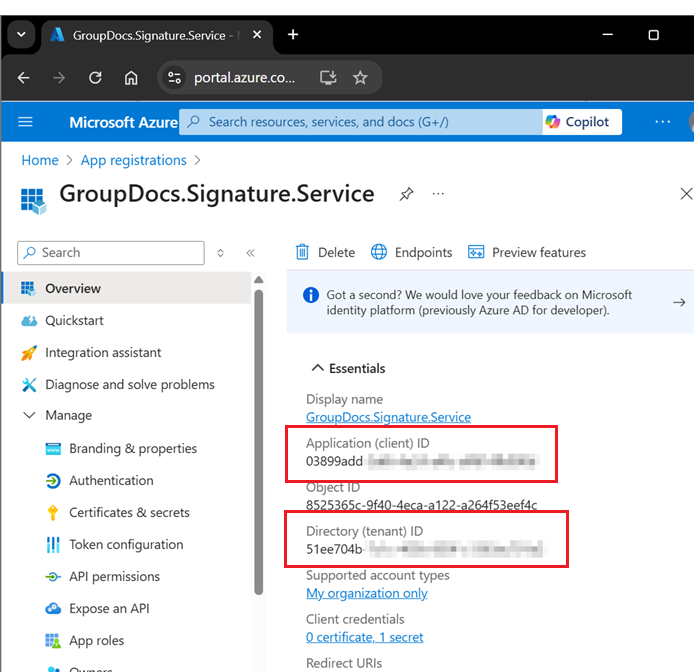

After registration, you’ll receive key details—copy the Client ID and Tenant ID for use in your application.

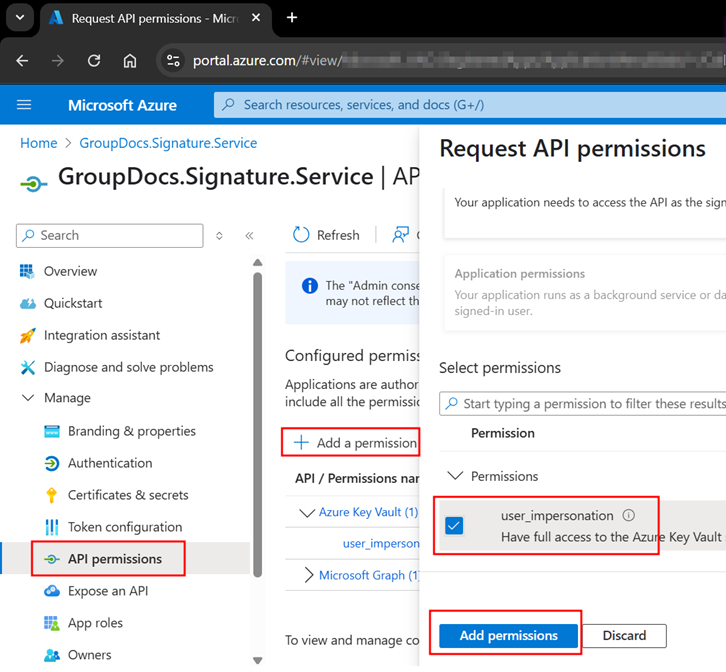

Step 3: Next, select API Permissions from the side menu and click Add Permission. Choose Azure Key Vault, select Full Access, and finalize the process by clicking Add Permissions.

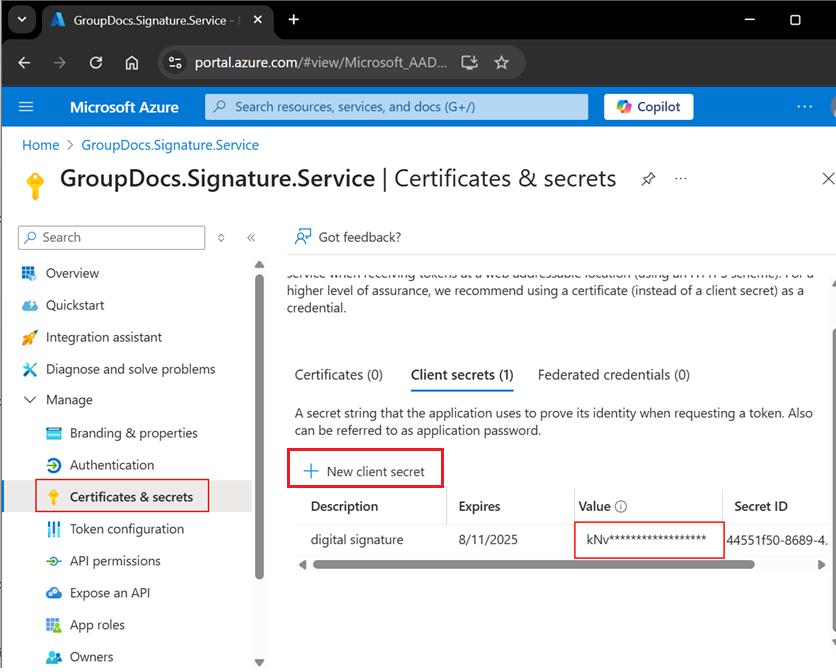

Step 4: Select the Certificate & secrets and click New client secret to create a new secret key. Copy this key to access it from your .NET application.

🔐 Assign the Access Policy to the Azure Key Vault

In the previous steps, we created and registered the application. Now, we need to grant the newly registered application access to the Azure Key Vault:

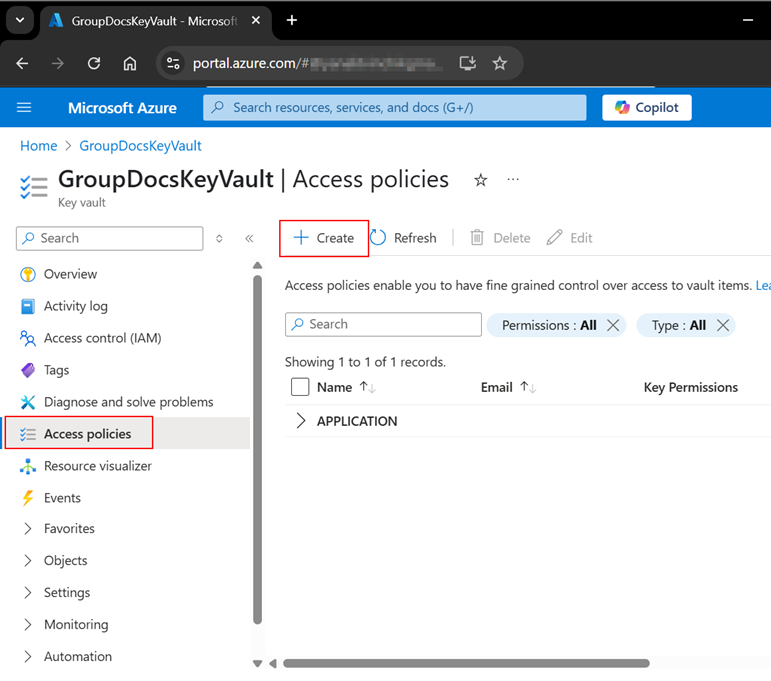

Step 1: Navigate to the Azure Key Vault, select Access Policies, and click Create.

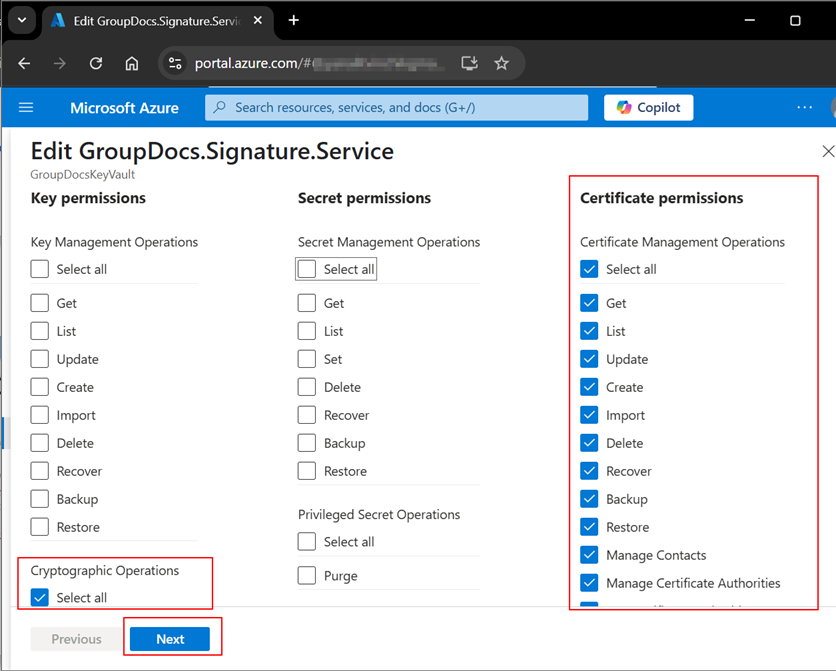

Step 2: Select the necessary permissions and click Next.

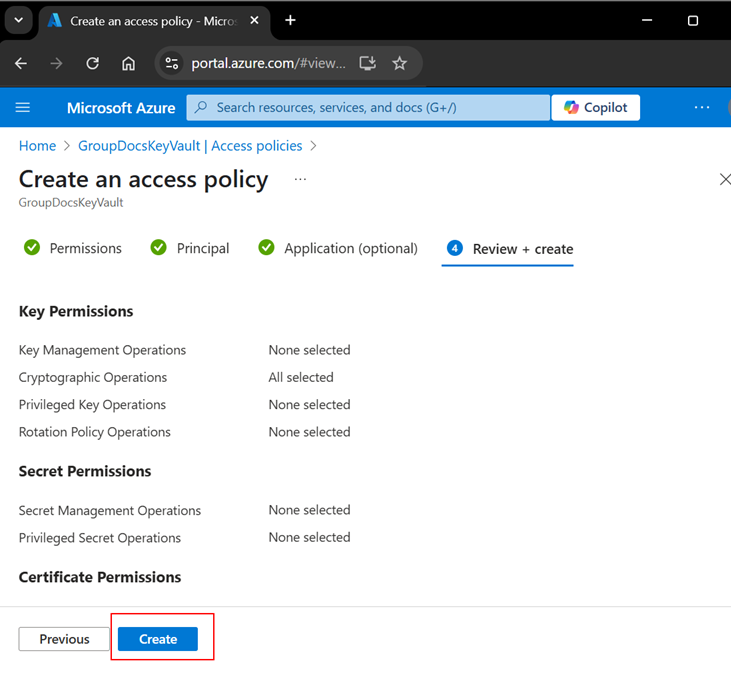

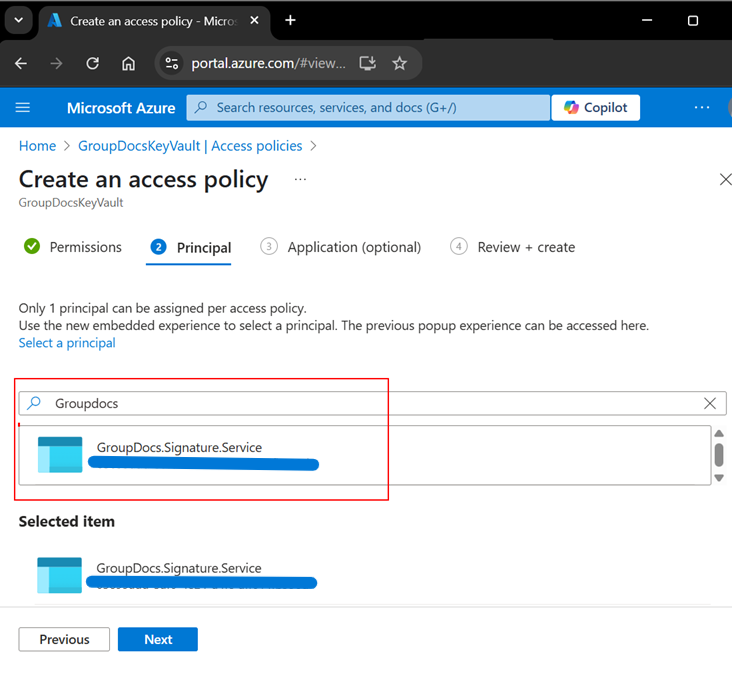

Step 3: In this window, choose the application we registered earlier, GroupDocs.Signature.Service, and click Create.

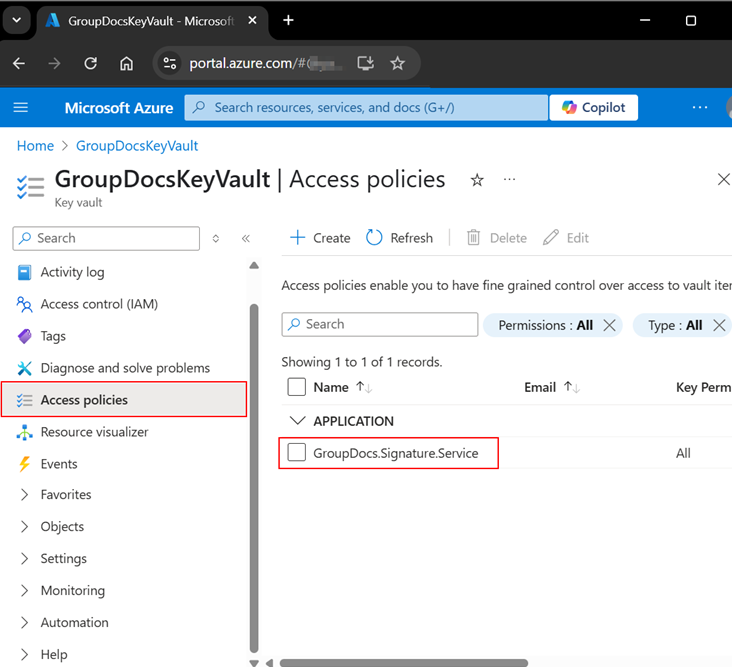

The application will now appear in the Access Policies section.

📑 How to use Azure Key Vault with GroupDocs.Signature for .NET PDF Signing

This comprehensive guide explains how to sign PDF documents using the GroupDocs.Signature API in .NET with custom hash signing that leverages Azure Key Vault. We’ll break down the process into clear steps—from configuring your C# environment to implementing a custom hash signer that meets digital signature compliance requirements.

Overview of Secure PDF Signing with Custom Hash Implementation

The custom hash signing approach offers exceptional flexibility for implementing electronic document signatures in your .NET applications. Here’s what we’ll cover:

• Set up your .NET application to work with GroupDocs.Signature for PDF digital signatures
• Configure professional digital signing options with proper certificate management
• Implement a custom hash signing mechanism for maximum flexibility
• Integrate Azure Key Vault to securely retrieve the public certificate and sign the document
• Follow security best practices throughout the implementation

For additional background, refer to the GroupDocs.Signature documentation on digital signing with custom hash.

🚀Benefits of Custom Hash Signing for .NET PDF Applications

Before diving into implementation, it’s important to understand why custom hash signing represents a significant advancement in digital signature technology:

1. Integration with External Signing Devices: Custom hash signing enables seamless connection with hardware security modules (HSMs), smart cards, biometric devices, and other specialized cryptographic hardware that your organization may already use.
2. Flexible Architecture for Enterprise Solutions: Organizations can write their own sign services that interface with existing infrastructure, legacy systems, or proprietary signing solutions while maintaining compatibility with GroupDocs.Signature.
3. Enhanced Security Compliance: By separating the hash generation from the actual signing process, you maintain better control over cryptographic operations, helping meet stringent regulatory requirements like eIDAS, ESIGN Act, and industry-specific compliance standards.
4. Support for Cloud-Based Key Management: Integration with Azure Key Vault allows certificates to be securely stored and managed in Microsoft’s certified secure infrastructure rather than on local machines.
5. Signature Process Customization: Implement custom approval workflows, multi-party signing sequences, or specialized validation rules that go beyond standard digital signature implementations.

Step 1. Configuring the C# PDF Digital Signature Environment

Start by defining your file paths and initializing the GroupDocs.Signature object in your C# application. In this example, we specify the source PDF file and the output location for the signed document.

public static void SignDocument()
{
    // Define paths for the source and output documents
    string sampleFilePath = "sample.pdf";
    string sampleOutputFilePath = "signed.pdf";

    using (Signature signature = new Signature(sampleFilePath))
    {
        // Code continues in the next steps...
    }
}

📌Annotation:

This step creates a new Signature instance that loads the PDF document you want to sign, establishing the foundation for secure PDF signing in your .NET application.

Step 2. Configuring Digital Signature Options

Next, set up your digital signature options. These options include certificate details, visual appearance, and the hash algorithm. The custom hash signing will be plugged in later.

// Initialize digital signing options
DigitalSignOptions options = new DigitalSignOptions()
{
    Signature = new DigitalSignature(),
    Password = "1234567890",      // Certificate password
    Reason = "Sign",              // Signing reason
    Contact = "JohnSmith",        // Contact information
    Location = "Office1",         // Signing location
    AllPages = true,              // Apply signature on all pages
    Width = 80,
    Height = 60,
    VerticalAlignment = VerticalAlignment.Bottom,
    HorizontalAlignment = HorizontalAlignment.Right,
    Margin = new Padding() { Bottom = 10, Right = 10 },
    HashAlgorithm = HashAlgorithm.Sha256 // Specify SHA-256 for hashing
};

📌Annotation:

Configure basic digital signature properties such as appearance, positioning, and hashing to ensure your electronic document signatures meet professional standards.

Security note: In production, avoid hardcoding sensitive values (like passwords); instead, use secure configuration methods consistent with digital signature compliance requirements.

Step 3. Implementing Custom Hash Signing

Now, assign your custom hash signer to the options. This custom signer implements the ICustomSignHash interface and will be used to sign the hash with Azure Key Vault or any other external signing device you wish to integrate.

var azureSigner = new AzureSigner();
options.CustomSignHash = azureSigner;
options.Signature.Certificate = azureSigner.GetPublicCertificateFromAzureStorage();

📌Annotation:

Here, an instance of AzureSigner is created. Its CustomSignHash method will be invoked during the signing process, and it also retrieves the public certificate from Azure Key Vault.

Step 4. Signing the Document

Finally, call the Sign method to generate the signed PDF document using your custom hash signing implementation.

signature.Sign(sampleOutputFilePath, options);

📌Annotation:

This method applies your digital signature to the document using the previously configured options, including your custom hash signer. The resulting PDF will contain a cryptographically secure signature that can be validated using standard PDF readers or programmatically with GroupDocs.Signature’s validation features.

Step 5. Detailed Implementation of Azure Certificate Signing

Below is the complete implementation of the custom signer using Azure Key Vault for Azure certificate signing. This class demonstrates professional Azure certificate signing practices by retrieving Azure credentials, fetching the public certificate, and securely signing the document hash.

public class AzureSigner : ICustomSignHash
{
    public byte[] CustomSignHash(byte[] hash, HashAlgorithm hashAlgorithm,
     SignatureContext signatureContext)
    {
        // Delegate the signing operation to Azure
        return SignWithAzure(hash);
    }

    private static byte[] SignWithAzure(byte[] signableHash)
    {
        // Retrieve Azure credentials
        var credential = GetAzureSecretCredential();

        // Specify your Key Vault certificate key identifier
        var certificateKeyId =
        "https://groupdocskeyvault.vault.azure.net/keys/GroupDocsSignatureCertificate/>";
        CryptographyClient client =
            new CryptographyClient(new Uri(certificateKeyId), credential);

        // Sign the hash using RS256
        var result = client.Sign(SignatureAlgorithm.RS256, signableHash);
        return result.Signature;
    }

    static ClientSecretCredential GetAzureSecretCredential()
    {
        // Provide your Azure AD tenant, client, and secret details
        string tenantId = "your tenant id";
        string clientId = "your client id";
        string secret = "your secret";
        ClientSecretCredential credential =
            new ClientSecretCredential(tenantId, clientId, secret);
        return credential;
    }

    public X509Certificate2 GetPublicCertificateFromAzureStorage()
    {
        // Define the Key Vault URI
        string vaultUri = "https://groupdocskeyvault.vault.azure.net/>";
        var credential  = GetAzureSecretCredential();
        X509Certificate2 pubCertificate =
        GetPublicCertificateFromAzureStorage(credential, vaultUri);
        return pubCertificate;
    }

    static X509Certificate2 GetPublicCertificateFromAzureStorage(
        ClientSecretCredential credential, string uri)
    {
        // Create a certificate client for the Key Vault
        CertificateClient certificateClient =
            new CertificateClient(new Uri(uri), credential);

        // Retrieve the certificate with the public key
        KeyVaultCertificateWithPolicy certificate =
        certificateClient.GetCertificateAsync("GroupDocsSignatureCertificate").Result;
        return new X509Certificate2(certificate.Cer);
    }
}

📌Annotations:

• Azure Credentials:
  The GetAzureSecretCredential method creates a credential using your tenant ID, client ID, and secret. Security note: Ensure you store these credentials securely (for example, using Azure Key Vault or a secure configuration store) to maintain the integrity of your .NET PDF signing implementation.
• Signing with Azure:
  The SignWithAzure method uses the CryptographyClient from Azure SDK to sign the hash with the certificate stored in Azure Key Vault, demonstrating a professional approach to certificate management that follows digital signature compliance best practices.
• Public Certificate Retrieval:
  The method GetPublicCertificateFromAzureStorage connects to your Azure Key Vault and retrieves the certificate necessary for signature verification, ensuring your electronic document signatures can be validated appropriately.

Step 6. Azure Key Vault Implementation Steps for PDF Digital Signatures

To integrate Azure Key Vault with your custom sign services, follow these steps:

1. Setup Azure Key Vault:
   • Create an Azure Key Vault instance.
   • Upload your signing certificate to the Key Vault.
   • Configure access policies for your application.
2. Configure Azure Credentials:
   • Register your application in Azure Active Directory.
   • Retrieve your tenant ID, client ID, and client secret.
   • Create a ClientSecretCredential for accessing Key Vault.
3. Retrieve the Certificate:
   • Use the CertificateClient to fetch the certificate containing the public key from Azure Key Vault.
   • This certificate is used to verify the digital signature.
4. Implement Custom Signing:
   • Use the Azure SDK’s CryptographyClient to sign the hash of the document.
   • Specify the appropriate signature algorithm (e.g., RS256).

📌Annotation:

Each of these steps is critical to ensure that your signing process is secure and that sensitive keys remain protected in the cloud while offering the flexibility to implement your own sign services for specialized requirements.

🧩 Extending Your Custom Signing Implementation

The beauty of GroupDocs.Signature’s custom hash signing approach is that you can adapt it to work with virtually any external signing device or service. Here are some examples of how you might extend this implementation:

1. Hardware Security Modules (HSMs): Implement a custom signer that communicates with physical HSMs for maximum security.
2. Smart Card Integration: Create a signer that interfaces with smart card readers for corporate environments that require physical authentication.
3. Biometric Authentication: Build a signing service that requires fingerprint or facial recognition before authorizing signature creation.
4. Multi-Party Approval: Implement a custom signing workflow where multiple parties must approve before the final signature is applied.
5. Cloud Service Providers: Adapt the example to work with AWS KMS, Google Cloud KMS, or other cloud key management services.

By implementing your own sign services through the ICustomSignHash interface, you maintain complete control over your cryptographic operations while leveraging the powerful document handling capabilities of GroupDocs.Signature for .NET.

✨ Final Thoughts on Electronic Document Signatures

This guide demonstrated how to integrate GroupDocs.Signature with Azure Key Vault for creating compliant electronic document signatures for PDF files in a secure manner. Electronic document signatures created through this method meet industry standards for authenticity and integrity. By following this step-by-step approach and observing security best practices (such as secure credential handling), you can implement a robust digital signing solution in your .NET application that works across your entire document workflow.

For further details and advanced scenarios, consult the official documentation.

Get a Free Trial

You can try GroupDocs.Signature APIs for free by just downloading and installing the latest version on our release downloads website.

You can also get a temporary license to test all the library’s functionalities without any constraints. Head to the temporary license page to apply for a temporary license.
